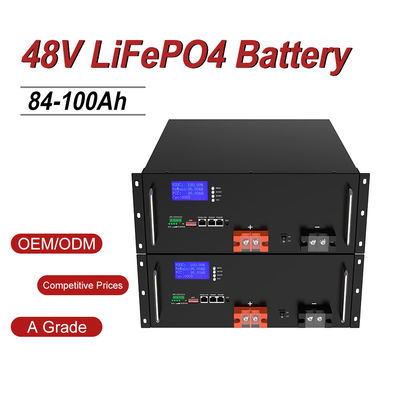

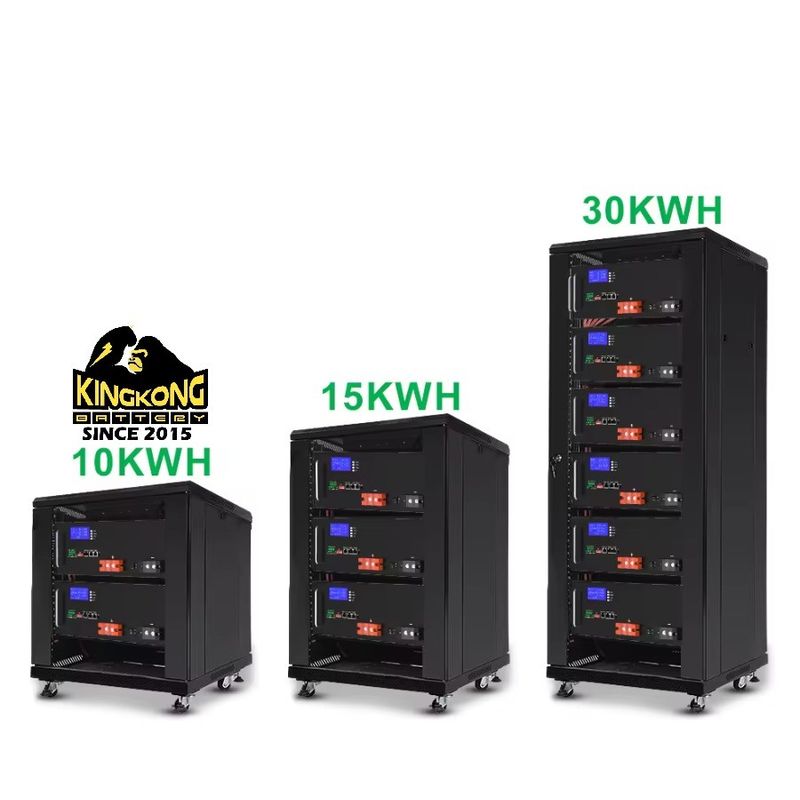

Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery

Product Details

Place of Origin: China

Brand Name: Kingkongbattery

Model Number: KK48V 100Ah L009

Payment & Shipping Terms

Price: $648.00/pieces 1-499 pieces

Get Best Price
Highlight:

50kwh Energy Storage Battery

,

Rack Mounted Energy Storage Battery

,

30kwh rack mount lifepo4 battery

Battery Type:
LiFePO4
Output Power Range:
5~10 KWh
Dimension (L*W*H):
482.6*510*155mm
Weight:
About 39.6kg
System Type:
Rack-mounted
Type:
Split
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Off Grid
Product Name:
51.2V 100Ah (LiFePO4) Battery
Energy:
5120Wh
Cycle Life:
6000+ Times
Warranty:
5years
Application:
Home Energy Storage, RV, Tower Base Station
Advantage:
Easier To Carry Or Move, A+
Structure:
1/3 Space Saving
BMS:
100A Or Customized BMS
Samples Time:
7 Days
OEM/ODM:
Warmly Welcomed
Battery Type:
LiFePO4
Output Power Range:
5~10 KWh
Dimension (L*W*H):
482.6*510*155mm
Weight:
About 39.6kg
System Type:
Rack-mounted
Type:
Split
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Off Grid
Product Name:
51.2V 100Ah (LiFePO4) Battery
Energy:
5120Wh
Cycle Life:
6000+ Times
Warranty:
5years
Application:
Home Energy Storage, RV, Tower Base Station
Advantage:
Easier To Carry Or Move, A+
Structure:
1/3 Space Saving
BMS:
100A Or Customized BMS
Samples Time:
7 Days
OEM/ODM:
Warmly Welcomed
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery
Specification
Electrical Characteristics
Nominal Voltage
48V
Nominal Capacity
100Ah
Energy
5120Wh
Internal Resistance
≤35mΩ
Cycle Life
6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of
14.6V until the current was not more than 0.02C
Charging Current
100A
Max.Charging Current
100A
Standard Discharging
Discharging Current
100A
Max. Continuous Current
100A
Max.Pulse Current
110A(<10S)
Discharging Cut-off Voltage
40
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
OEM ODM
YES
Casing
Mental

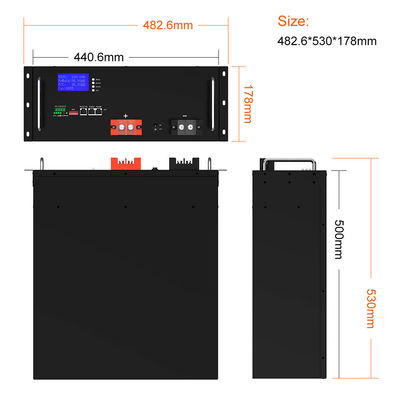

Dimension(L*W*H*TH)
482.6*510*155mm 3.5U
Weight
Approx.39-45Kg

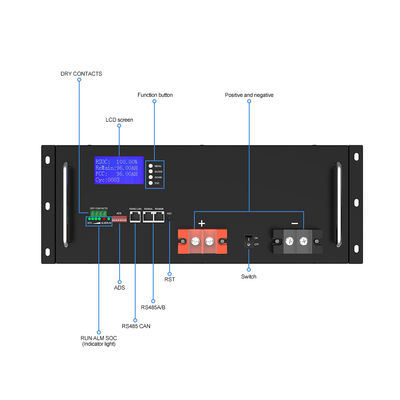

Communication Interface
RS485A+RS485B
CAN or RS485
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 0

About KingKongBattery
KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 1
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 2



Why KingKongBattery is your BEST Partner?

--Your Expert For Power Solution:

With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by RFQ, we have received RFQ's recommendation.

--Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

--Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

--Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

--OEM / ODM Supported:
 With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

 Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
--------------------------------

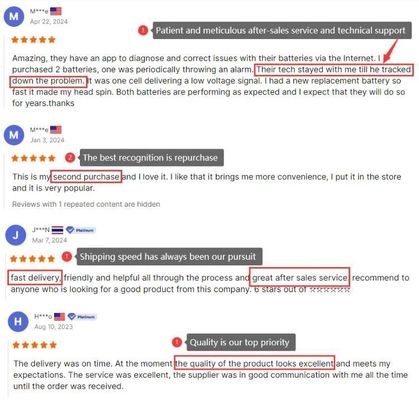

Real customer feedback


Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 3







Just like the partners below
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 4
How we guarantee TOP quality?
Grade A CELL 100% Brand New with Original QR code !!!!!
QR CODE Scanner
VERIFIED QR CODE
Talk Leo(Click here) to get more details

Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 5



All Single battery must test over 3 times before shipping,
to make sure they are in top quality level
with full capacity, matched voltage & internal resistance.
Please contact Talk Leo(Click here)  to learn more about our offer. Thanks.
Reliability TEST

Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 6
Top Equipment & Production
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 7 Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 8
Accessories you will also need
KingKong battery are Official distributor of EVE/ HC/NDSD  brand and Supply other safety Pack accessories together Just show us what kinds of BMS you need.
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 9
Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support
100% after-sales support

Talk Leo(Click here)  to get more details
Inverter Protocol Matching

BMS Inverter Communication Protocol Matching Table

Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 10

Packing & Shipping
Affordable 10kwh 15kwh 30kwh 40kwh 50kwh Stackable Rack Mounted Energy Storage Battery 11



FAQ
DIY battery packmust get the cellsbalanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detectedvoltage/resistance/appearanceand other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.

2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case oflossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1.    After the assembly or assembly process happen any problem, such as theprotection board connected to the wrong wire burned lead to   battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
