Home > products > Powerwall With Rollers > 48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery

48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery

Product Details

Place of Origin: China

Brand Name: kingkongbattery

Model Number: 48V 100AH/200AH z006

Payment & Shipping Terms

Price: $652.00 - $1,880.00/pieces

Get Best Price
Highlight:

48V solar inverter battery

,

300ah solar inverter battery

,

200ah 48v 100ah lifepo4 battery pack

Battery Type:
LiFePO4
Output Power Range:
5~10 KWh
System Type:
Wall-mounted
Type:
All-in-one
Communication Port:
CAN, RS485
Protection Class:
IP65
Grid Connection:
Hybrid Grid, Off Grid
Product Name:
LifePO4 Lithium Battery Pack
Application:
Solar Energy Storage Systems
Protection:
BMS Protection
Weight:
55KG/95KG
Nominal Voltage:
48V
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
Battery Type:
LiFePO4
Output Power Range:
5~10 KWh
System Type:
Wall-mounted
Type:
All-in-one
Communication Port:
CAN, RS485
Protection Class:
IP65
Grid Connection:
Hybrid Grid, Off Grid
Product Name:
LifePO4 Lithium Battery Pack
Application:
Solar Energy Storage Systems
Protection:
BMS Protection
Weight:
55KG/95KG
Nominal Voltage:
48V
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery
Model
KK-WM-LV 5
KK-WM-LV 10
Main Parameter
Cell Technology
Lithium-iron Phosphate (LiFePO4)
Nominal Energy
5kWh
10kWh
Round-Trip Efficiency
98%
Scalability
Max. 15 Modules in Parallel
Dimensions(L/W/H)
615*500*160mm
615*580*215mm
Weight
55kg
95kg
Installation
Indoor
Warranty
5 Years Product Warranty
10 Years Performance Warranty
Electrical Parameter
Nominal Voltage
51.2V
Nominal Capacity
100Ah
200Ah
Max Charge Current
100A
Max. Cont. Charge Current
100A
Max Discharge Current
100A
Max. Cont. Discharge Current
100A
Operating Voltage Range
48V~56V
Standard Charge Voltage
56V±0.5
Discharge Cut-Offff Voltage
45V±0.5
General Parameter
Cycle Life
≥6000 Times (80%DoD)
Service Life
10 Years
Protection Rating
IP55
Display
SOC Status Indicator(optional), LED Indicator
Communication
RS485, RS232, CAN
Charge Temperature Range
0C~60C (Under 0C extra heating mechanism)
Discharge Temperature Range
-20C~60C (Under 0Cwork with reduced capacity)
Storage Temperature Range
-40C~55C @ 60%±25% relative humidity
Compatible Inverters
SMA, Victron Energy, Deye, Goodwe, Growatt, Sermatec, etc.
* Compatible tests with different brands of inverter are continuously, updates will be periodically.
** Under specifific test conditions.

About KingKongBattery
KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 0
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 1



Why KingKongBattery is your BEST Partner?

--Your Expert For Power Solution:

With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by RFQ, we have received RFQ's recommendation.

--Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

--Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

--Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

--OEM / ODM Supported:
 With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

 Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
--------------------------------

Real customer feedback


48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 2







Just like the partners below
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 3
How we guarantee TOP quality?

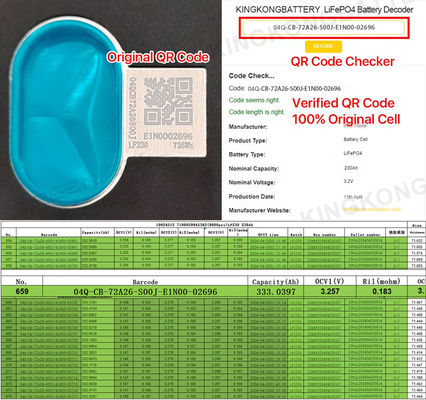

Grade A CELL 100% Brand New with Original QR code !!!!!
QR CODE Scanner
VERIFIED QR CODE
Talk Leo(Click here) to get more details

48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 4



All Single battery must test over 3 times before shipping,
to make sure they are in top quality level
with full capacity, matched voltage & internal resistance.
Please contact Talk Leo(Click here)  to learn more about our offer. Thanks.
Reliability TEST

48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 5
Top Equipment & Production
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 6 48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 7
Accessories you will also need
KingKong battery are Official distributor of EVE/ HC/NDSD  brand and Supply other safety Pack accessories together Just show us what kinds of BMS you need.
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 8
Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support
100% after-sales support

Talk Leo(Click here)  to get more details
Inverter Protocol Matching

BMS Inverter Communication Protocol Matching Table

48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 9

Packing & Shipping
48V 16S BMS Prismatic A Solar Inverter Battery 100ah 200ah 300ah Lifepo4 Pack Battery 10



FAQ
DIY battery packmust get the cellsbalanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detectedvoltage/resistance/appearanceand other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.

2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case oflossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1.    After the assembly or assembly process happen any problem, such as theprotection board connected to the wrong wire burned lead to   battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
