Home > products > Powerwall With Rollers > OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery

OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery

Product Details

Place of Origin: Guangdong, China

Brand Name: Kingkongbattery

Model Number: 51.2V 300AH J16

Payment & Shipping Terms

Minimum Order Quantity: 2 sets

Price: $2,885.00/sets 2-9 sets

Get Best Price
Highlight:

40KWH Solar Energy Storage Battery

,

BMS Solar Energy Storage Battery

,

30KWH solar battery system

Features:
BT Function / LCD Display
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
3pcs: 530*480*760mm
Weight:
3pcs: 175kg/202kg
System Type:
Stackable
Type:
Split
Communication Port:
CAN, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
51.2V 300AH
Warranty:
10YEARS
Communication Function:
RS485/CAN
Max. Parallel Number:
16 Parallel
Cycle Life:
6000 Times
OEM/ODM:
Accepatable
Usage:
Home Storage System
Package:
Wooden Box + Pallet
Features:
BT Function / LCD Display
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
3pcs: 530*480*760mm
Weight:
3pcs: 175kg/202kg
System Type:
Stackable
Type:
Split
Communication Port:
CAN, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
51.2V 300AH
Warranty:
10YEARS
Communication Function:
RS485/CAN
Max. Parallel Number:
16 Parallel
Cycle Life:
6000 Times
OEM/ODM:
Accepatable
Usage:
Home Storage System
Package:
Wooden Box + Pallet
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery
Battery Specifications
Model No
KK-HV-15.36KWH
KK-HV-20.48KWH
KK-HV-25.6KWH
KK-HV-30.72KWH
KK-HV-35.84KWH
KK-HV-40.96KWH
Nominal Capacity
15.36KWh
20.48KWh
25.6KWh
30.72KWh
35.84KWh
40.96KWh
Cell Matching
48S1P
64S1P
80S1P
96S1P
112S1P
128S1P
Working Voltage Range
124.8-172.8V
166.4-230.4V
208-288V
249.6-345.6V
291.2-403.2V
332.8-460.8V
Nominal Voltage
153.6V
204.8V
256.0V
307.2V
358.4V
409.6V
Weight
175kg/202kg
223kg/252kg
271kg/301kg
319kg/351kg
367kg/401kg
415kg/452kg
Dimension(WxDxH)
530*480*760mm
530*480*920mm
530*480*1080mm
530*480*1240mm
530*480*1400mm
530*480*1560mm
Battery Type
LFP(LiFePO4)
Nominal Working Current
50A
Communication Port
CAN/RS485
Working Temperature Range
Charge: 0-45C/Discharge:-10-50℃
Waterproof
IP55
Installation Method
Floor-standing
Cycle Life
6000 times
Peak Charge/Discharge Current
50A
Discharge Rate of Module
≤3.5%/month/@25℃
Module Series Connection /Module
8S~16S
Parallel Connection
16 units in parallel
Support Inverter Brand
Victron,Pylon,Deye,SMA,Growatt,Goodwe,MPP,Voltronicpower,Pchne,Sofarsolar,Megarevo.......
Warranty
10 years
About KingKongBattery
KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 0
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 1



Why KingKongBattery is your BEST Partner?

--Your Expert For Power Solution:

With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by RFQ, we have received RFQ's recommendation.

--Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

--Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

--Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

--OEM / ODM Supported:
 With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

 Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
--------------------------------

Real customer feedback


OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 2







Just like the partners below
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 3
How we guarantee TOP quality?

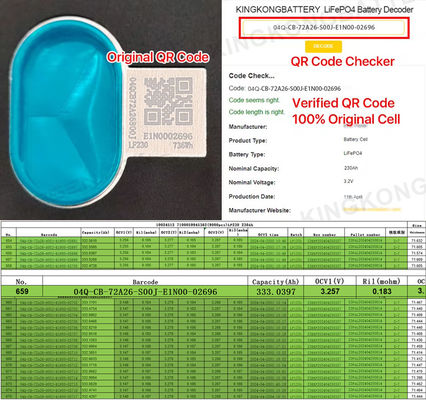

Grade A CELL 100% Brand New with Original QR code !!!!!
QR CODE Scanner
VERIFIED QR CODE
Talk Leo(Click here) to get more details

OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 4



All Single battery must test over 3 times before shipping,
to make sure they are in top quality level
with full capacity, matched voltage & internal resistance.
Please contact Talk Leo(Click here)  to learn more about our offer. Thanks.
Reliability TEST

OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 5
Top Equipment & Production
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 6 OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 7
Accessories you will also need
KingKong battery are Official distributor of EVE/ HC/NDSD  brand and Supply other safety Pack accessories together Just show us what kinds of BMS you need.
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 8
Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support
100% after-sales support

Talk Leo(Click here)  to get more details
Inverter Protocol Matching

BMS Inverter Communication Protocol Matching Table

OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 9

Packing & Shipping
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 10



FAQ
DIY battery packmust get the cellsbalanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detectedvoltage/resistance/appearanceand other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.

2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case oflossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1.    After the assembly or assembly process happen any problem, such as theprotection board connected to the wrong wire burned lead to   battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
OEM 153V 204V 256V 15KWH 20KWH 30KWH 40KWH Stackable BMS Solar Energy Storage Battery 11
