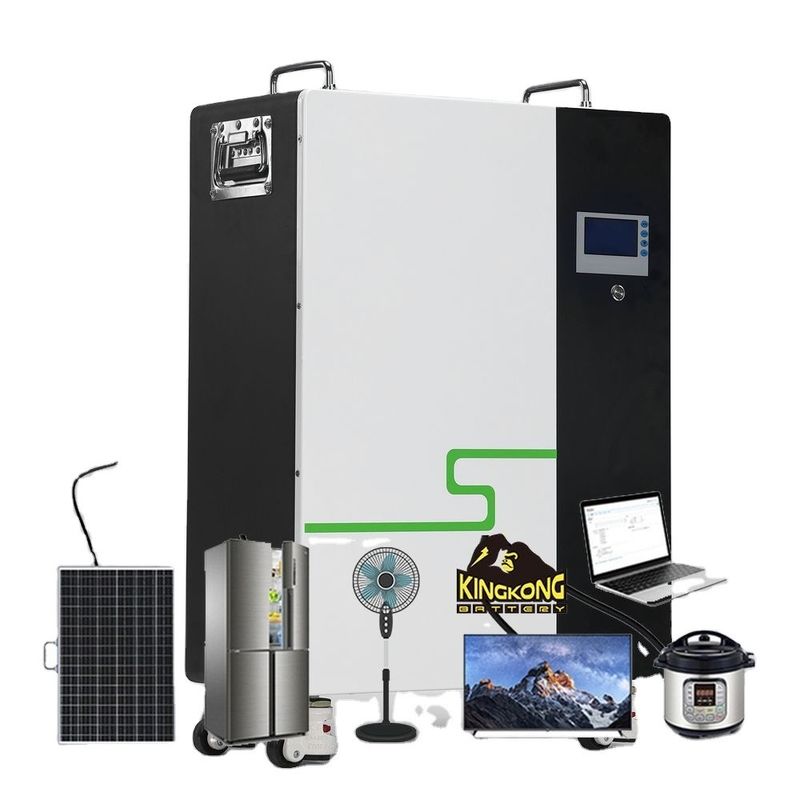

200ah 300ah 400ah 48v Lifepo4 Rack Mount Lithium Battery 15kwh 20kwh Bateria High Capacity Solar Energy Storage

Product Details

Place of Origin: Guangdong, China

Brand Name: Kingkongbattery

Model Number: 51.2V 300ah J19

Payment & Shipping Terms

Price: $1,409.00 - $1,720.00/pieces

Get Best Price
Highlight:

Lifepo4 rack mount lithium battery

,

48v rack mount lithium battery

,

400ah battery rack mount

Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
770*475*255mm
Weight:
112kg, 55KG/95KG
System Type:
Wall-mounted
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
LifePO4 Lithium Battery Pack
Application:

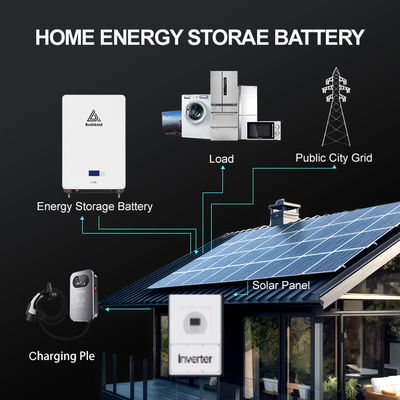

Solar Energy Storage Systems
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
Power Source:
Solar Panel
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
770*475*255mm
Weight:
112kg, 55KG/95KG
System Type:
Wall-mounted
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
LifePO4 Lithium Battery Pack
Application:
Solar Energy Storage Systems
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
Power Source:
Solar Panel
200ah 300ah 400ah 48v Lifepo4 Rack Mount Lithium Battery 15kwh 20kwh Bateria High Capacity Solar Energy Storage
Wall-mounted 48V/51.2V 2.5-4.8-5-9.6-10.24
Type Wall-mounted 48V/51.2V
Model EW-48V50-2.5 EW-48V100-5 EW-48V200-10 EW-51.2V50-2.5 EW-51.2V100-5 EW-51.2V200-10
Specification 48V50Ah 51.2V50Ah 48V100Ah 51.2V100Ah 48V200Ah 51.2V200Ah
Combination 15S1P 16S1P 15S1P 16S1P 15S1P 16S1P
Capacity 2.4KWh 2.56KWh 4.8KWh 5.12KWh 9.6KWh 10.24KWh
Standard discharge current 50A 50A 50A 50A 50A 50A
Max.discharge current 100A 100A 100A 100A 100A 100A
Working voltagerange 40.5-54VDC 43.2-57.6VDC 40.5-54VDC 43.2-57.6VDC 40.5-54VDC 43.2-57.6VDC
Standard Voltage 48VDC 51.2VDC 48VDC 51.2VDC 48VDC 51.2VDC
Max.charging current 50A 50A 50A 50A 100A 100A
Max.charging voltage 54V 57.6V 54V 57.6V 54V 57.6V
Cycle 3000~6000cycles@DOD 80%/25℃/0.5C
Working humidity 65±20%RH
Operating temperature -10~+50℃
Working altitude ≤2500m
Cooling method Natural cooling
Installation Wall mount
Protectionleve IP20
Max of parallel 15PCS
Warranty 5~10 Years
Communication Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth
Certified CE ROHSFCC UN38.3 MSDS
Product Size 400*200*585mm 400*230*585mm 400*230*610mm
Package Size 500*260*630mm 500*290*630mm 460*250*650mm
Net weight 35kg 40kg 42kg 46kg 102kg 106kg
Gross weight 40kg 45kg 50kg 54kg 112kg 116kg
Talk Leo(Click here) to get more Battery Capacity and Battery Energy
"Voltage,capacity,size/color cu stomization,OEM/ODM services can be provided according to customer needs
