Home > products > DlY Battery Box > IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range

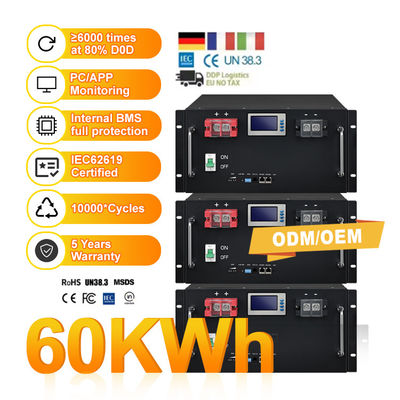

IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range

Product Details

Place of Origin: China

Brand Name: Kingkongbattery

Model Number: 48V 100AH J14

Payment & Shipping Terms

Price: $780.00 - $1,779.00/pieces

Get Best Price
Highlight:

OEM 48v 100ah lifepo4 battery pack

,

IP55 48v 100ah lifepo4 battery pack

,

20 KWh lifep04 battery pack

Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
440*435*222mm
Weight:
70KG/119KG/150KG With Packing, 70KG/119KG/150KG With Packing
System Type:
Rack-mounted
Communication Port:
CAN, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
51.2V Energy Storage Lithium Ion Battery
Capacity:
120Ah 280Ah 300Ah
Battery Protection:
Over-current/over Voltage/short Circuit/low Voltage/high Temperature
Working Temperature:
-20℃-60℃
Size:
440*435*222mm
Warranty:
10 Years
Max. Parallel Number:
15 Parallel
Cycle Life:
6000 Times
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
440*435*222mm
Weight:
70KG/119KG/150KG With Packing, 70KG/119KG/150KG With Packing
System Type:
Rack-mounted
Communication Port:
CAN, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
51.2V Energy Storage Lithium Ion Battery
Capacity:
120Ah 280Ah 300Ah
Battery Protection:
Over-current/over Voltage/short Circuit/low Voltage/high Temperature
Working Temperature:
-20℃-60℃
Size:
440*435*222mm
Warranty:
10 Years
Max. Parallel Number:
15 Parallel
Cycle Life:
6000 Times
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range
Applications:
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
4.bicycle
--LED Backup / Engine Starting Battery,etc



Type

Rack Mount Battery
Model
ER-51.2V100-5.1
ER-51.2V230-11.7
ER-51.2V304-15.3
Nominal Voltage
51.2V
51.2V
51.2V
Nominal Capacity
100Ah
230Ah
304AH
Energy
5120Wh
11776Wh
15360wh
Talk Leo(Click here)  to get more Battery Capacity and Battery Energy
Series or Parallel Connection
16S1P
16S1P
16S1P
Maximum Charge Current
100A
200A
200A
Charge Current (-20 to - 10 ºC)
≤0.05C
≤0.05C
≤0.05C
Recommended Charge Voltage
56V-57.6V
56V-57.6V
56V-57.6V
BMS Charge Voltage Cut-Off
57.6V (3.75±0.025vpc)
57.6V (3.75±0.025vpc)
57.6V (3.75±0.025vpc)
Reconnect Voltage
54.6V (3.34 ±0.05vpc)
54.6V (3.34 ±0.05vpc)
54.6V (3.34 ±0.05vpC)
Dimensions(L x W x H)
440*435*222mm
480*248*618mm
475*255*770mm
Weight
70KG with wooden packing
120KG with wooden packing
150KG with wooden packing
Communication Interface
RS485 (Optional)
RS485 (Optional)
RS485/CAN (Optional)
Case Material
Metal
Metal
Metal
Enclosure Protection
IP54
IP54
IP54
Maximum Continuous Discharge Current
100A
200A
200A
BMS Discharge Current Cut-Off
100A
200A
200A
Reconnect Voltage
45V
45V
45V
Discharge Temperature
-20 to 60ºC (-4 to 140 ºF)
-20 to 60ºC (-4 to 140 ºF)
-20 to 60ºC (-4 to 140 ºF)
Charge Temperature
0 to 45ºC (32 to 113 ºF)
0 to 45ºC (32 to 113 ºF)
0 to 45ºC (32 to 113 ºF)
About KingKongBattery
KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 0
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 1



Why KingKongBattery is your BEST Partner?

--Your Expert For Power Solution:

With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by RFQ, we have received RFQ's recommendation.

--Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

--Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

--Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

--OEM / ODM Supported:
 With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

 Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
--------------------------------

Real customer feedback


IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 2







Just like the partners below
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 3
How we guarantee TOP quality?
Grade A CELL 100% Brand New with Original QR code !!!!!
QR CODE Scanner
VERIFIED QR CODE
Talk Leo(Click here) to get more details

IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 4



All Single battery must test over 3 times before shipping,
to make sure they are in top quality level
with full capacity, matched voltage & internal resistance.
Please contact Talk Leo(Click here)  to learn more about our offer. Thanks.
Reliability TEST

IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 5
Top Equipment & Production
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 6 IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 7
Accessories you will also need
KingKong battery are Official distributor of EVE/ HC/NDSD  brand and Supply other safety Pack accessories together Just show us what kinds of BMS you need.
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 8
Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support
100% after-sales support

Talk Leo(Click here)  to get more details

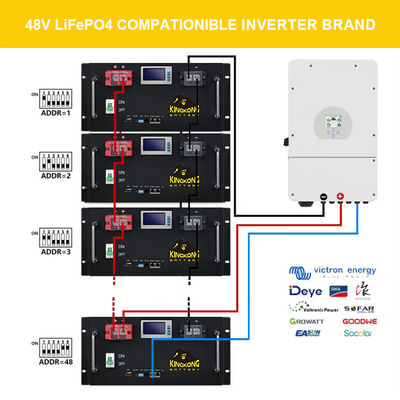

Inverter Protocol Matching

BMS Inverter Communication Protocol Matching Table

IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 9

Packing & Shipping
IP55 OEM 48V 100AH LiFePO4 Battery Pack For Energy Storage 10-20 KWh Output Power Range 10



FAQ
DIY battery packmust get the cellsbalanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detectedvoltage/resistance/appearanceand other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.

2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case oflossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1.    After the assembly or assembly process happen any problem, such as theprotection board connected to the wrong wire burned lead to   battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
