Home > products > 3.2V LiFePO4 Battery > 6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery

6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery

Product Details

Place of Origin: Guangdong, China

Brand Name: Kingkongbattery

Model Number: 51.2V 300ah J13

Payment & Shipping Terms

Price: $1,409.00 - $1,720.00/pieces

Get Best Price
Highlight:

30kwh solar inverter battery

,

20kwh solar inverter battery

,

200AH battery inverter solar

Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
770*475*255mm
Weight:
112kg, 55KG/95KG
System Type:
Wall-mounted
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
LifePO4 Lithium Battery Pack
Application:
Solar Energy Storage Systems
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
Power Source:
Solar Panel
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
Dimension (L*W*H):
770*475*255mm
Weight:
112kg, 55KG/95KG
System Type:
Wall-mounted
Communication Port:
CAN, RS232, RS485
Protection Class:
IP55
Grid Connection:
Hybrid Grid, Off Grid
Model No.:
48V 100AH
Product Name:
LifePO4 Lithium Battery Pack
Application:
Solar Energy Storage Systems
Cycle Life:
6000times
Warranty:
5YEARS
OEM/ODM:
Yes(Accepted)
Special Features:
RV Port
Controller Type:
MPPT
Power Source:
Solar Panel
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery
Wall-mounted 48V/51.2V 2.5-4.8-5-9.6-10.24
Type roller-mounted 48V/51.2V
Model EW-48V50-2.5 EW-48V100-5 EW-48V200-10 EW-51.2V50-2.5 EW-51.2V100-5 EW-51.2V200-10
Specification 48V50Ah 51.2V50Ah 48V100Ah 51.2V100Ah 48V200Ah 51.2V200Ah
Combination 15S1P 16S1P 15S1P 16S1P 15S1P 16S1P
Capacity 2.4KWh 2.56KWh 4.8KWh 5.12KWh 9.6KWh 10.24KWh
Standard discharge current 50A 50A 50A 50A 50A 50A
Max.discharge current 100A 100A 100A 100A 100A 100A
Working voltagerange 40.5-54VDC 43.2-57.6VDC 40.5-54VDC 43.2-57.6VDC 40.5-54VDC 43.2-57.6VDC
Standard Voltage 48VDC 51.2VDC 48VDC 51.2VDC 48VDC 51.2VDC
Max.charging current 50A 50A 50A 50A 100A 100A
Max.charging voltage 54V 57.6V 54V 57.6V 54V 57.6V
Cycle 3000~6000cycles@DOD 80%/25℃/0.5C
Working humidity 65±20%RH
Operating temperature -10~+50℃
Working altitude ≤2500m
Cooling method Natural cooling
Installation Roller
Protectionleve IP20
Max of parallel 15PCS
Warranty 5~10 Years
Communication Default:RS485/RS232/CAN Optional:WiFi/4G/Bluetooth
Certified CE ROHSFCC UN38.3 MSDS
Product Size 400*200*585mm 400*230*585mm 400*230*610mm
Package Size 500*260*630mm 500*290*630mm 460*250*650mm
Net weight 35kg 40kg 42kg 46kg 102kg 106kg
Gross weight 40kg 45kg 50kg 54kg 112kg 116kg
Talk Leo(Click here) to get more Battery Capacity and Battery Energy
"Voltage,capacity,size/color cu stomization,OEM/ODM services can be provided according to customer needs


About KingKongBattery
KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 0
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 1



Why KingKongBattery is your BEST Partner?

--Your Expert For Power Solution:

With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses
Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by RFQ, we have received RFQ's recommendation.

--Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

--Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

--Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

--OEM / ODM Supported:
 With an experienced team of energy storage structural and software engineers, we offer flexible customization services. Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

 Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
--------------------------------

Real customer feedback


6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 2







Just like the partners below
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 3

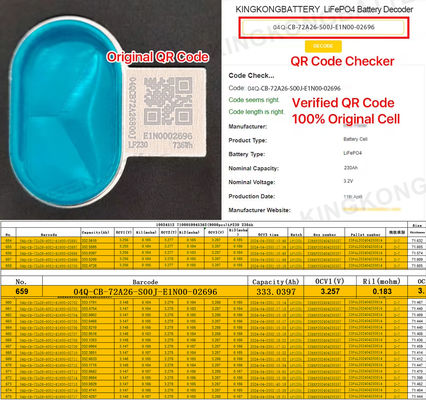

How we guarantee TOP quality?
Grade A CELL 100% Brand New with Original QR code !!!!!
QR CODE Scanner
VERIFIED QR CODE
Talk Leo(Click here) to get more details

6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 4



All Single battery must test over 3 times before shipping,
to make sure they are in top quality level
with full capacity, matched voltage & internal resistance.
Please contact Talk Leo(Click here)  to learn more about our offer. Thanks.
Reliability TEST

6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 5
Top Equipment & Production
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 6 6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 7

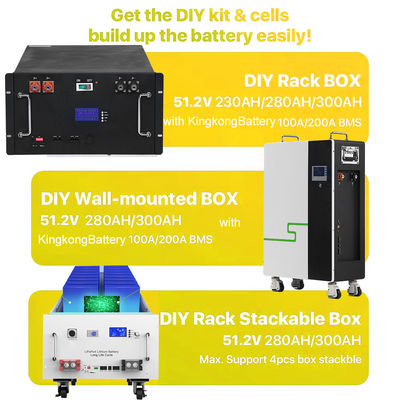

Accessories you will also need
KingKong battery are Official distributor of EVE/ HC/NDSD  brand and Supply other safety Pack accessories together Just show us what kinds of BMS you need.
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 8
Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support
100% after-sales support

Talk Leo(Click here)  to get more details
Inverter Protocol Matching

BMS Inverter Communication Protocol Matching Table

6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 9

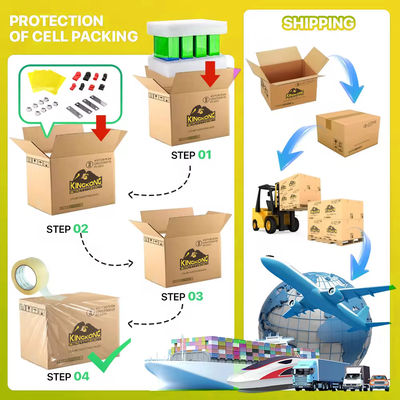

Packing & Shipping
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 10



FAQ
DIY battery packmust get the cellsbalanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detectedvoltage/resistance/appearanceand other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initialcapacity,take the test pictures or video to us,we will replace it or give satisfied solution.

2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case oflossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1.    After the assembly or assembly process happen any problem, such as theprotection board connected to the wrong wire burned lead to   battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
6000 Times Cycle Life 48V 200AH 10kwh 20kwh 30kwh Solar Inverter Battery 11
