36 Volt 100Ah Lithium Ion Rechargeable Marine Battery

China Henan Duxin Science Technology Co.,Ltd. certification
I'm Online Chat Now

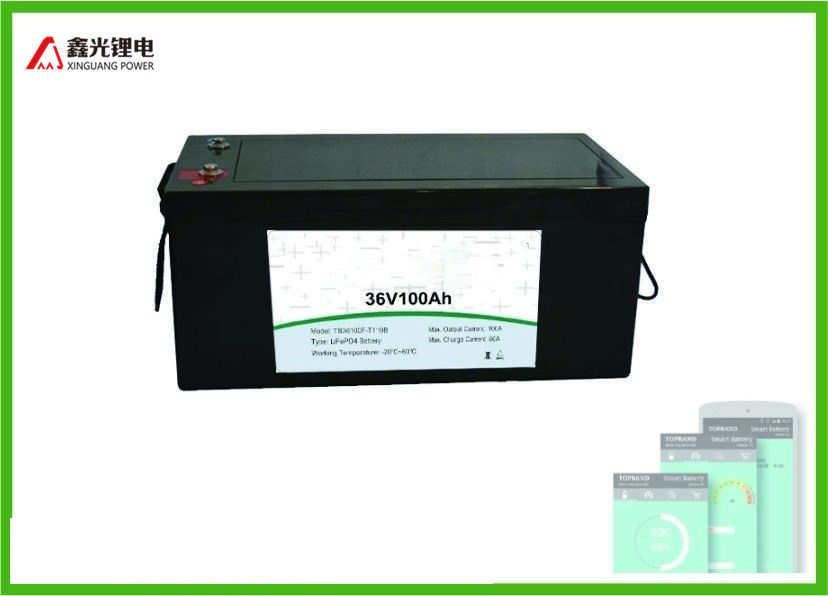

36 Volt 100Ah Lithium Ion Rechargeable Marine Battery

36 Volt 100Ah Lithium Ion Rechargeable Marine Battery
36 Volt 100Ah Lithium Ion Rechargeable Marine Battery 36 Volt 100Ah Lithium Ion Rechargeable Marine Battery

Large Image :  36 Volt 100Ah Lithium Ion Rechargeable Marine Battery

Product Details:
Place of Origin: China
Brand Name: Xinguang lithium battery
Certification: CE,ROHS,UN38.3,MSDS
Model Number: 36 Volt 100Ah
Payment & Shipping Terms:
Minimum Order Quantity: 5 groups
Price: Negotiable
Packaging Details: Standard export carton, wooden case, pallet etc.
Delivery Time: 5-15 days for samples, 25-30 days for bulk order
Payment Terms: Western Union, L/C, T/T
Supply Ability: 60,000kWh
Detailed Product Description
Type: Lithium Ion Size: Customized
Warranty: 36 Months Cycle Life: Up To 2000 Times
Usage: Boat/RV / Car Color: Customize
Product Name: 36 Volt 100Ah With 2 Years Warranty Lithium Ion Rechargeable Marine Battery Lead Time: 5-15 Days For The Sample Order , 25-30 Days For Bulk Order
High Light:

100Ah Rechargeable Marine Battery


36V Rechargeable Marine Battery


100Ah Lithium Ion Battery

Lithium ion Rechargeable Marine Battery 36V 100AH with 2 years Warranty, Lifepo4 battery with Bluetooth


This specification defines the performance of rechargeable LiFePO4 battery pack describes the type, performance, technical characteristics, warning and caution of the battery pack.






NO Items Description
Normal Specification
1 Nominal Voltage 38.4V
2 Normal Capacity 100Ah
3 Internal Resistance ≤25mΩ
4 Series-Parallel application up to 4 series-connected applications
5 Communication function Bluetooth
Standard Charge
6 Charge operation temperature range 0~45℃
7 Normal charge voltage 43.8±0.2V
8 Recommended float charge voltage(for Standby use) 41.4±0.2V
9 Allowed MAX constant charge current 80A@Battery initial Temp 25±5℃
10 Recommended charge current 100A
Standard Discharge
11 Discharge operation temperature range -20~60℃
12 Outgoing Voltage ≥38.4V
13 Allowed MAX constant discharge current 100A @Battery initial Temp 25±5℃
14 Pulse discharge current 400±100A/Continuous for 5±1s
15 Discharge end voltage 10.0~11.5V


Customize Any of The Following Battery Packs as Required
Can be customized according to the requirements of 3.7V, 7.4V, 11.1V, 14.8V, 18.5V, 22.2V, 25.9V, 36V, 48V, 60V, 72V



Test Conditions

Electrical Characteristics & Test Condition
Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

NO Items Criterion Condition
1 Min Capacity ≥98Ah Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.

Cycle life (DOD%100)
≥2000cycle Discharge with the current of 0.33C until it can’t discharge, and then rest it for 1h. Charge the battery following CC (1C)/CV (43.8V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
Discharge Temperature
-20℃ ≥70% At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
0℃ ≥80%
25℃ 100%
55℃ ≥95%
4 Charge Retention ability remain capacity≥90% Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.




Circuit Protection
The batteries are supplied with a LiFePO4 Battery Management System (BMS) that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

Test item Content Criterion
Over charge Over-charge protection for each cell 3.75±0.03V
Over-charge release for each cell 3.60±0.05V
Over-charge release method Under the release voltage
Over discharge Over-discharge protection for each cell 2.8±0.04V
Over-discharge release for each cell 3.0±0.04V
Over-discharge release method Charging
Over current Discharge over current protection 110~300A
Protection delay time 10~40ms
Over current release method 8s after cutoff the load.
Charge over temperature Protection @55±5℃
Release @45±5℃
Discharge over temperature Protection @65±5℃
Release @55±5℃
Static power ≤200uA



The battery uses imported original big brand ion batteries, with a small internal resistance, big capacity, cycle times and more, no memory effect, etc; internal circuit for multiple protection design, can prevent over charge, over discharge, over current; production process quality inspection and monitoring the use of computers to ensure superior battery performance.


Golf trolly of 12v 1200w motor , Wireless camera, surveillance cameras, wireless infrared detector, car LCD TV, portable DVD, personal treatment system, PDA personal data assistant, personal communications systems, walkie-talkies, digital cameras, camcorders, video cameras, Bluetooth devices, CD players, MD players, MP3 players, smart cards, aviation model LED lights and other fields can be used in 12V power.


36 Volt 100Ah Lithium Ion Rechargeable Marine Battery 0




How to choose a suitable battery pack?

  • battery voltage is the same with the original.
  • battery size same with the original. Or similar/smaller.
  • battery plugs same with the original (check the plug diagram)

Match the above three conditions, in general, this battery can be used.

The larger of MAH, the longer use time. Different voltage, battery size, shape, can be same voltage, because the battery combination of different ways, the shape is not the same. You can leave a message about your old battery, please pay attention!!!




LiFePO4 12V Rechargeable Battery Pack 100Ah Solar Marine 1KW Power Energy Storage 0

Product advantage



long life & deep cycle( over 2000cycles @ 100%DOD)

· with built-in PCM/BMS protection

· super quick charge/discharge performance

· safe pressure valve design ( no explosion, no fire)

· high energy density

· low self-discharge( <3% per month,<15% per year)

· high consistency

· easily replace lead acid battery




Quality Control



Capacity test, High current discharge test,Low temperature test, Short circuit test, Over charging test,

Over discharging test, Cycle performance test, Crush test, Impact test, Vibration test, High temperature test



• We offer 3 years warranty for battery packs in low discharge rate (below 1C) applications,
• We offer 2 years warranty for battery packs in high discharge rate (1~3C) applications.
• For charger / BMS, here are one year warranty.



The battery need to be charged every 6 months if out of use; No fall down, no pile up over 6 layers, and keep face up.


Battery Pack Delivery

• By Air Door to Door Service

• By Sea Door to Door Service

• By Express: EMS, TNT, UPS, FedEx

36 Volt 100Ah Lithium Ion Rechargeable Marine Battery 2
